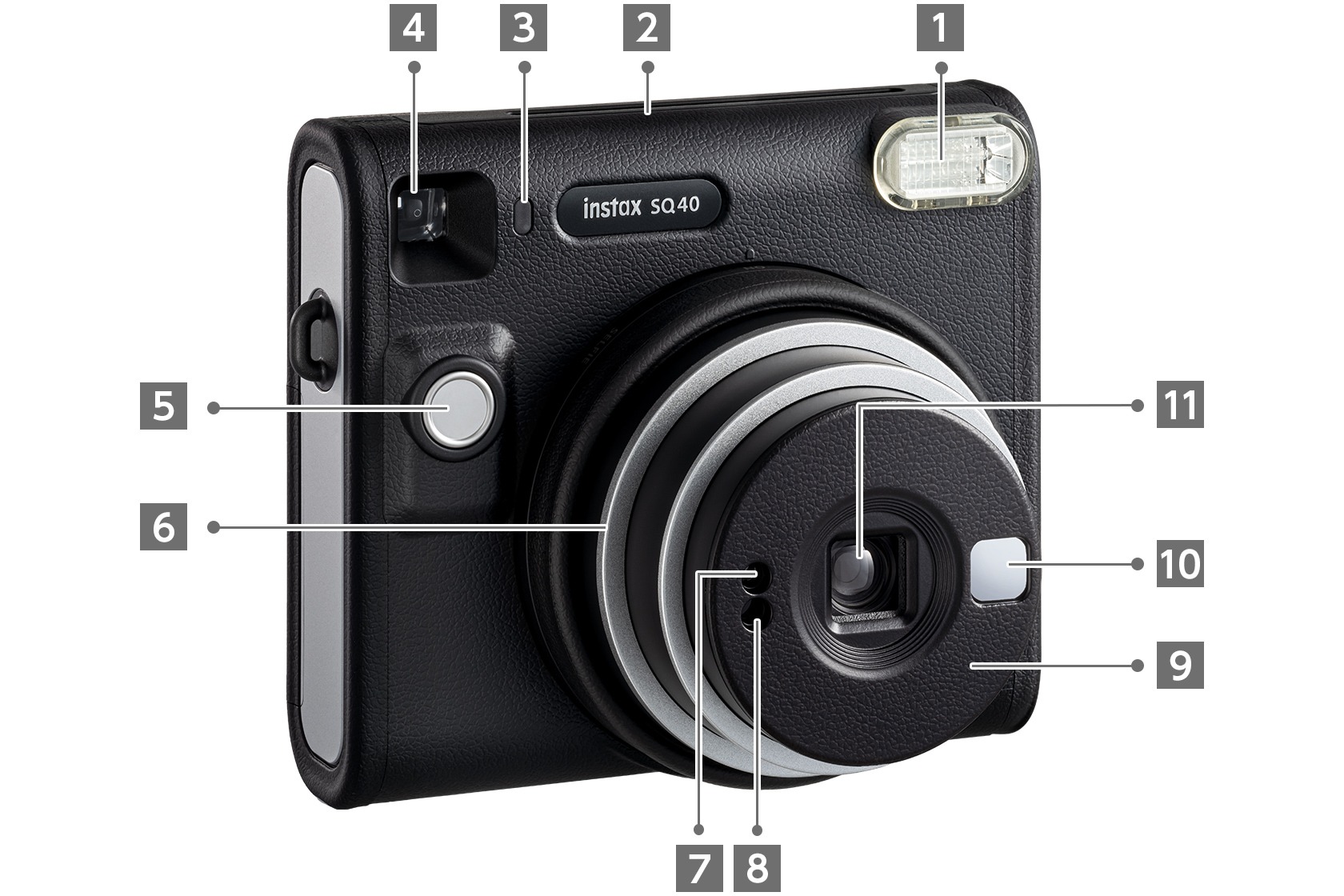

Front
1.Flash lampface
2. Film ejection slot
3. Flash charging lamp
4. Viewfinder
5. Shutter button
6. Lens ring / Power
7. AE light sensor
8. Flash light sensor
9. Lens barrel
10. Selfie mirror
11. Lens cover / Lens

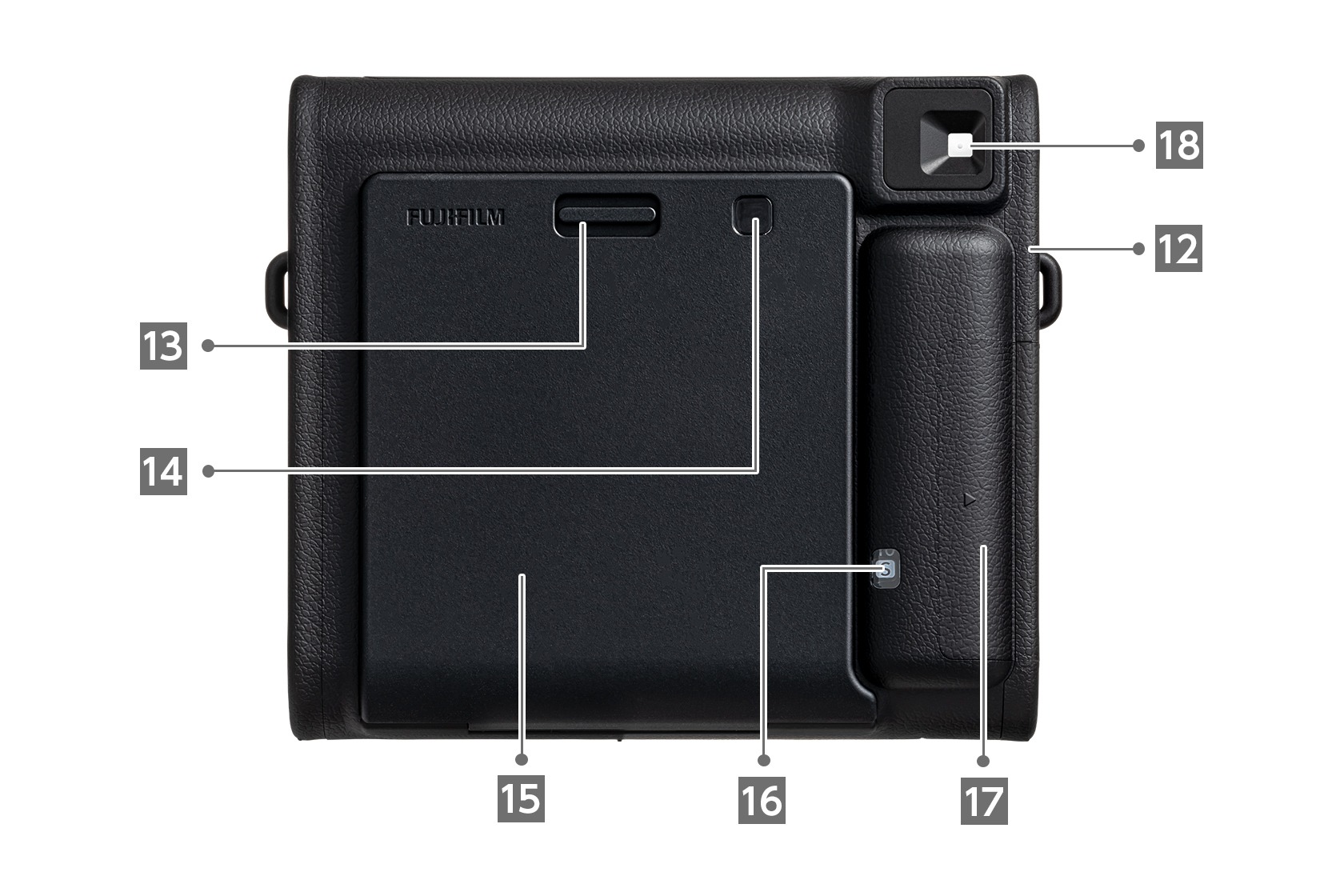

Rear
12. Strap eyelet
13. Back cover lock
14. Film confirmation window
15. Back cover
16. Film counter
17. Battery lid
18. Viewfinder eyepiece
Specifications
| Film | FUJIFILM instax™ SQUARE instant film |
| Photo Picture Size | 62mm×62mm |
| Lens | 2components, 2elements, f = 65.75mm, 1:12.6 |
| Viewfinder | Reverse Galilean finder, 0.4×, with target spot |
| Shooting Range | 0.3m and beyond (use selfie mode for 0.3m to 0.5m) |
| Shutter | Programmed electronic shutter 1/2 to 1/400 sec. Slow synchro for low light |
| Exposure Control | Automatic, Lv 5.0 to 15.5 (ISO 800) |
| Film Ejection | Automatic |
| Film Developing Time | Approx. 90seconds (varies depending on the ambient temperature) |
| Flash | Constant firing flash (automatic light adjustment), recycle time: 7.5seconds or less (when using new batteries), effective flash range: 0.3 to 2.2m |
| Power Supply |
Two lithium batteries (CR2), capacity: approx. 30 instax™ SQUARE film packs (under FUJIFILM test conditions) |
| Auto Power Off Time | After 5minutes |
| Other | Includes film counter and film pack confirmation window |
| Dimensions | 134.2mm×120.2mm×60.5mm |
| Weight | 453g (without batteries, strap, and film) |
| Rental | No |
|---|
