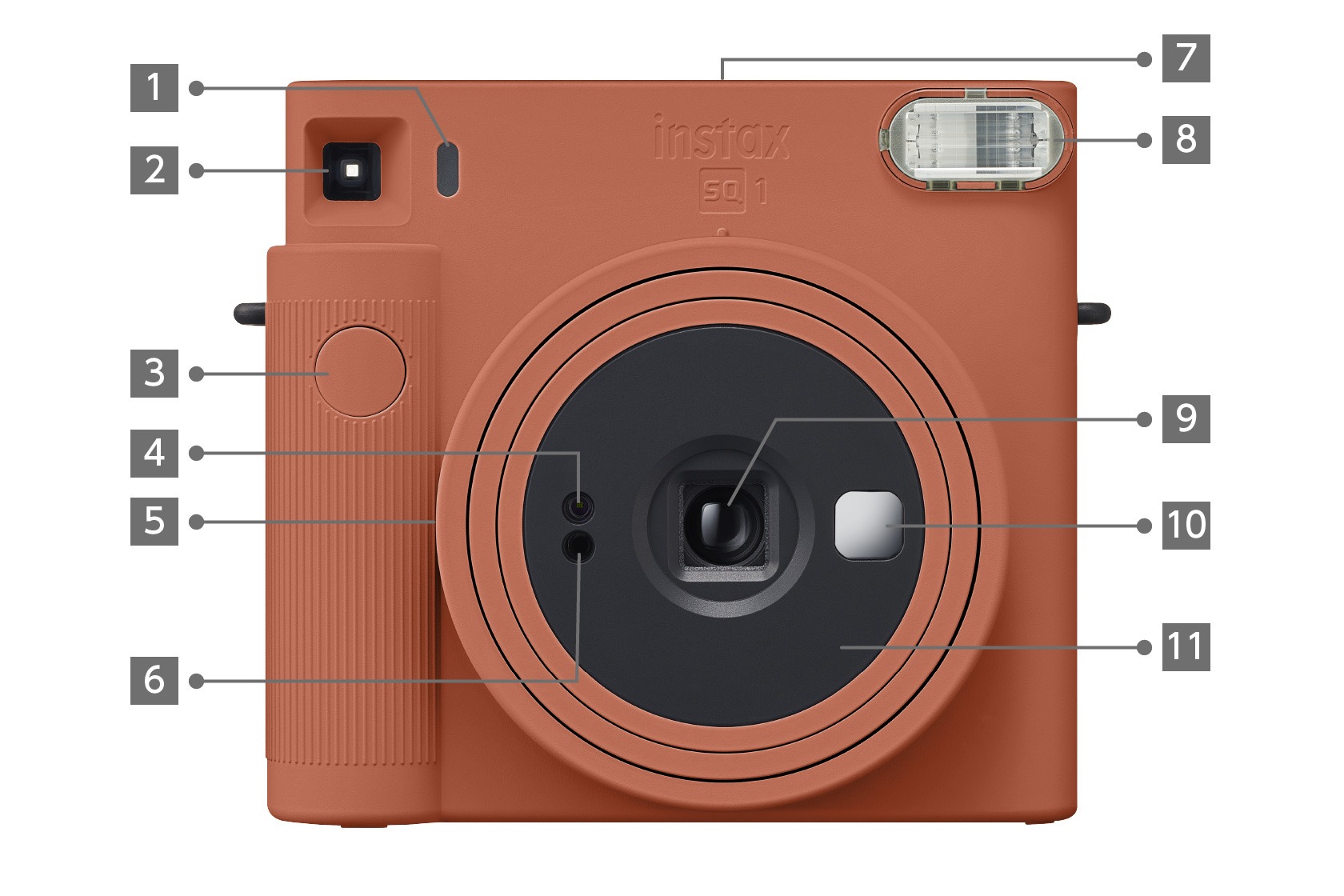

Front
1. Flash charging lamp
2. Viewfinder
3. Shutter button
4. AE light sensor
5. Lens ring / Power
6. Flash light sensor
7. Film ejection slot
8. Flash lampface
9. Lens cover / Lens
10. Selfie mirror
11. Lens barrel

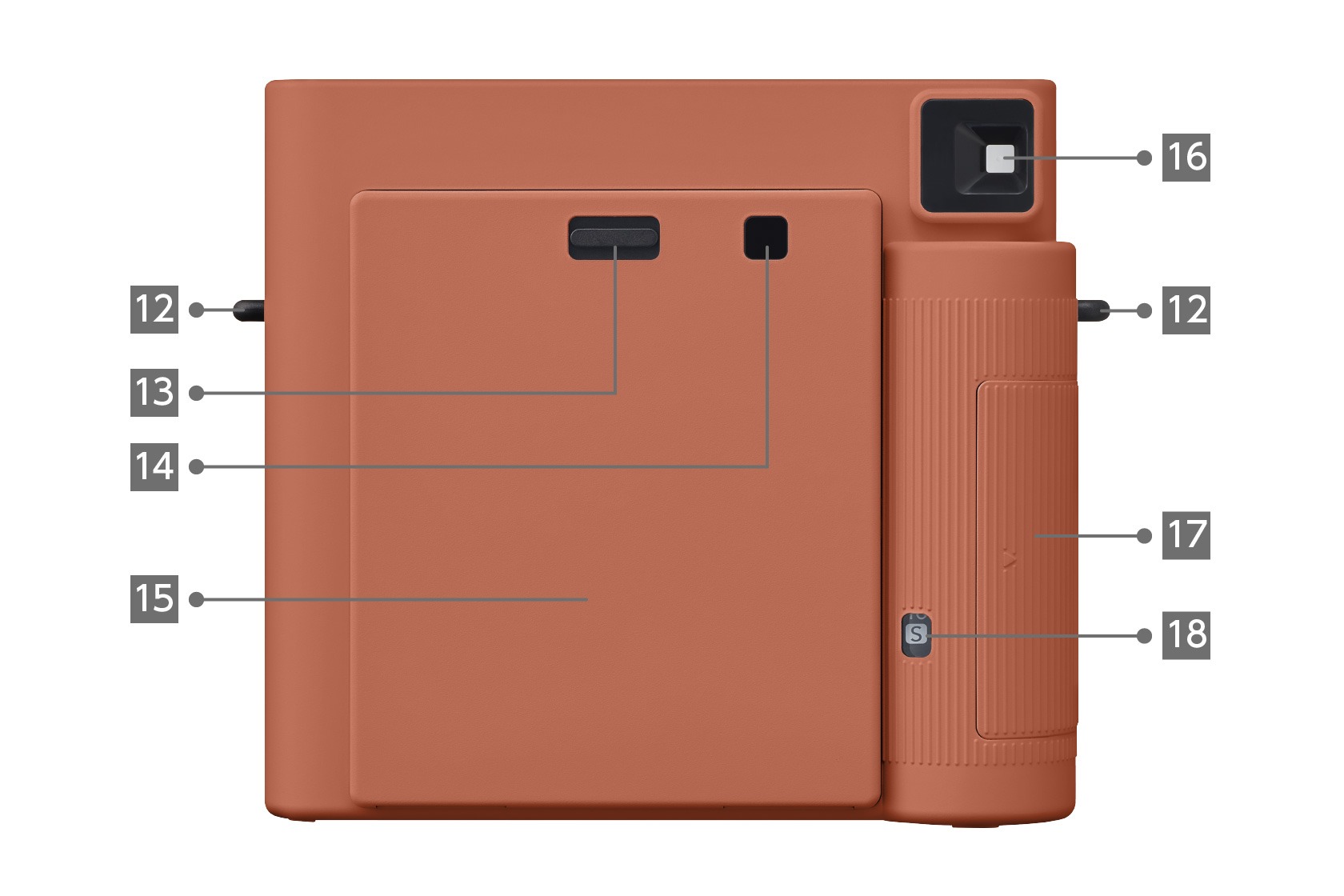

Rear
12. Strap eyelet
13. Back cover lock
14. Film confirmation window
15. Back cover
16. Viewfinder eyepiece
17. Battery lid
18. Film counter
Specifications
| Film | FUJIFILM instax™ SQUARE instant film |
| Photo Picture Size | 62mm×62mm |
| Lens | 2components, 2elements, f = 65.75mm, 1:12.6 |
| Viewfinder | Reverse Galilean finder, 0.4×, with target spot |
| Shooting Range | 0.3m and beyond (use selfie mode for 0.3m to 0.5m) |
| Shutter | Programmed electronic shutter 1/2 to 1/400 sec. Slow synchro for low light |
| Exposure Control | Automatic, Lv 5.0 to 15.5 (ISO 800) |
| Film Ejection | Automatic |
| Film Developing Time | Approx. 90seconds (varies depending on the ambient temperature) |
| Flash | Constant firing flash (automatic light adjustment), recycle time: 7.5seconds or less (when using new batteries), effective flash range: 0.3 to 2.2m |
| Power Supply |
Two lithium batteries (CR2), capacity: approx. 30 instax™ SQUARE film packs (under FUJIFILM test conditions) |
| Auto Power Off Time | After 5minutes |
| Other | Includes film counter and film pack confirmation window |
| Dimensions | 130.7mm×118.6mm×57.5mm |
| Weight | 390g (without batteries, strap, and film) |
| Rental | No |
|---|
